BatterySafe™ - F-Series - Lithium-ION Battery Case - Size 22.95 X 15.28 X 9.72

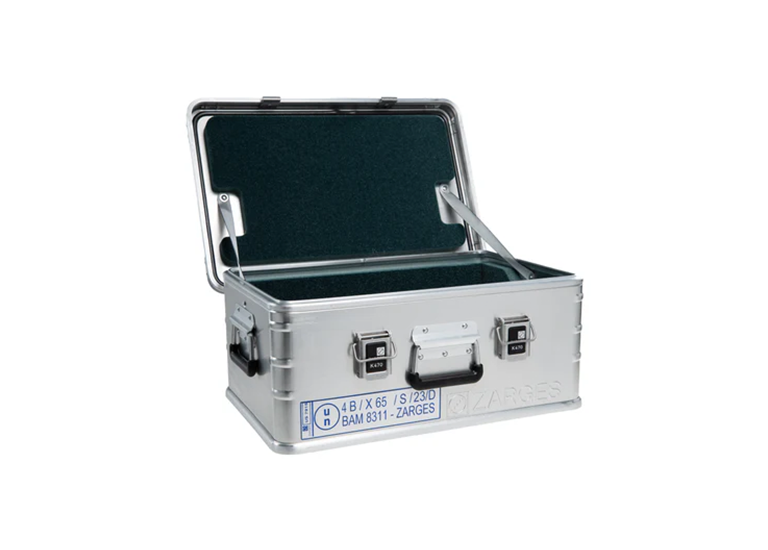

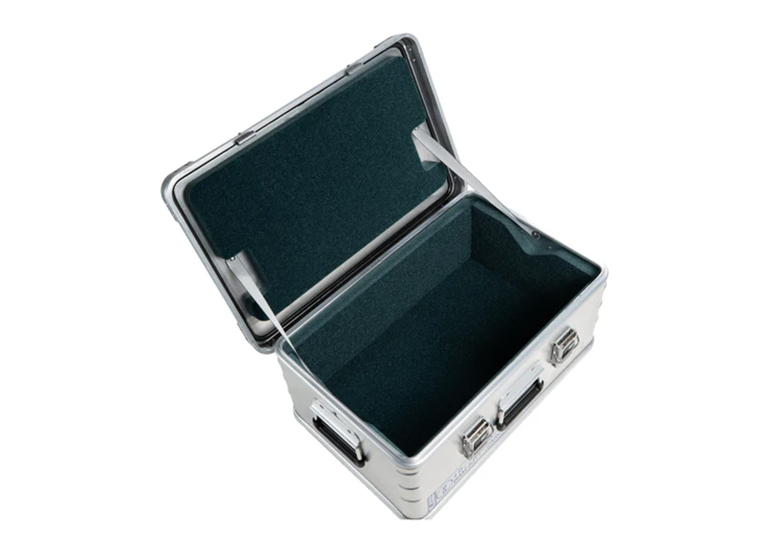

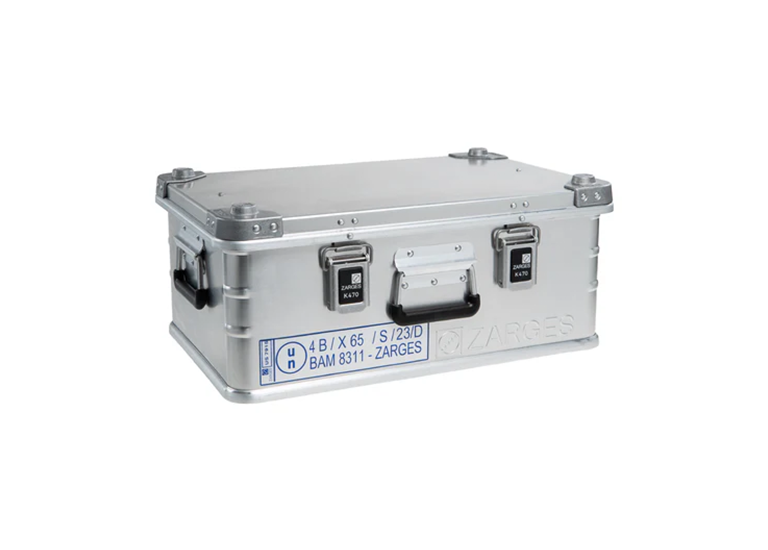

F-Series Lithium-Ion Battery Case - 6160568 (UN Certified)

The Zarges F-Series Battery Case (Model 6160568) is a specialized, safety-first enclosure designed for the secure storage and legal transport of lithium-ion batteries. Engineered using the industry-standard K470-40568 aluminum case, this F-Series model is specifically adapted to meet the rigorous safety demands of laboratories, industrial workshops, and hazardous materials logistics.

Featuring a 1" FRAS (Fire-Resistant, Anti-Static) lining, the 6160568 provides a certified environment that mitigates the risks of thermal runaway, electrolyte leaks, and static discharge. Note: This product has a standard lead time of 2 weeks.

Performance and Portability

Zarges aluminum cases provide a superior protective shell that outperforms plastic and traditional heavy-duty flight cases:

• Ultra-Lightweight: Up to 50% lighter than plastic cases and 70% lighter than "roadie" style cases.
• Military-Grade Durability: MIL-STD-810 tested and fully resistant to dust and water.
• Space Efficient: Offers 15–20% more interior volume in a smaller footprint than competing brands.
• Customizable Security: Available in standard sizes or with custom internal FRAS configurations to fit your specific battery module dimensions.

UN-Certified Safety & Compliance

Compliance is critical when handling dangerous goods. The F-Series 6160568 is built to meet and exceed international transport standards:

• UN Packaging Group 1: Certified for hazardous goods transport up to 143 lbs.
• 49CFR Compliance: Meets U.S. DOT standards for domestic battery shipping.
• ATA 300 Category 1: Approved for rigorous airline and transit cycles.
• IMDG Standards: Fully compliant for international maritime dangerous goods transport.

F-Series 6160568 Key Features

• Aircraft-Grade Aluminum Shell: Provides a rugged, non-combustible shield for high-value battery assets.
• FRAS Interior Protection: Specialized lining reduces the risk of sparks, flame spread, and thermal propagation.
• Configurable Interior: Choose between standard FRAS lining, full FRAS fill, or custom-cut foam nests.
• Legal Transport Ready: Ensures your organization remains compliant with shipping regulations for lithium batteries.
• Modular Scaling: Part of the F-Series family, offering sizes for everything from small test cells to large-scale power packs.

Technical Specifications

Dimensions

Physical Properties

• Weight: 10.5 lb
• Volume: 42 L
