EV Fire Suppressor Mister™

Advanced Fire Suppression Tool for Electric Vehicle Emergencies

The Brimstone EV Fire Suppressor Mister™ is a precision-engineered firefighting tool designed to enhance cooling and suppression during lithium-ion battery fire emergencies. Delivering a 10 gpm (38 lpm) low-flow water mist spray with firefighting droplets under 1,000 microns, the Mister directs water efficiently to a vehicle’s undercarriage to reduce temperatures and slow thermal runaway events.

Tested and validated, the Mister’s low-flow system is as effective as high-flow alternatives, while conserving water resources and reducing toxic runoff. With a low-profile design (2.25” / 5.7 cm tall) and 15 omni-directional spray nozzles, it easily fits under most vehicles for maximum coverage.

The Brimstone Mister is a critical component of the EV Fire Suppressor System™ and is recommended for use alongside Brimstone EV Fire Suppressor Blankets for comprehensive lithium-ion battery fire protection.

How It Works

1. Containment: An EV Fire Suppressor Blanket covers the vehicle to block oxygen, suppress flames, reduce smoke, and lower surface temperatures.
2. Cooling: The Mister delivers a fine mist directly to the undercarriage, pulling heat away from the chassis and battery modules.
3. Suppression: Together, the blanket and Mister stop flames, reduce vapor cloud ignitions, and prevent the spread of fire.

Key Features & Benefits

• Low-profile Mister head (2.25” clearance) fits under most EVs.
• 15 omni-directional nozzles provide consistent undercarriage coverage.
• True firefighting droplet size (<1,000 microns) for maximum efficiency.
• Conserves water while reducing hazardous runoff.
• Built with durable, high-visibility components for fast deployment.
• Works independently or with Brimstone EV Fire Suppressor Blankets (ST, XL, XLE, 2XL).
• Designed and assembled in ISO 9001:2015 registered facilities. Proudly sewn in the USA.

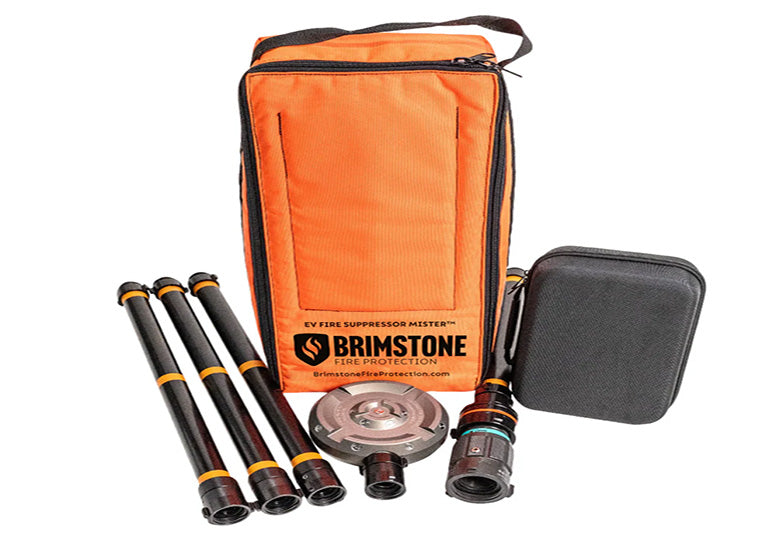

What’s Included

• 6” (15.2 cm) diameter Mister spray head with 15 omni-directional nozzles
• Valve pipe with twist-to-open valve and universal swivel connection
• Three standard pipe lengths for adjustable assembly
• In-line mesh filter sleeve for reliable operation
• Carrying bag for easy transport and deployment
• Zippered hard case for gaskets, filters, and spanner wrenches

Specifications

• Flow Rate: 10 gpm (38 lpm) at 100 psi
• Droplet Size: <1,000 microns (firefighting standard mist)
• Clearance: 2.25" (5.7 cm) tall Mister head
• Assembled Length: 92" (233.7 cm)
• Weight: 12 lbs (5.5 kg)
• Carrying Case: 9.75" x 20.5" x 5.5" (24.8 cm x 52.1 cm x 14 cm)
• Hose Fitting: 1.5” forestry lug fitting (US fire hose compatible)

Other Uses

• Stand-alone cooling in undercarriage fire response.
• Effective performance in winds up to 25 mph.
• Can assist in mitigating vapor cloud ignition during EV fires.

Tested and Proven Performance

The Brimstone EV Fire Suppressor Mister™ has been rigorously tested and proven effective in cooling and suppression during lithium-ion fire events. Its fine mist delivery system offers efficient, safe, and resource-conscious protection in the most demanding emergency scenarios.

Complete Your EV Fire Suppressor System™

Pair the Mister with a Brimstone EV Fire Suppressor Blanket (ST, XL, XLE, or 2XL) for maximum safety and performance in electric vehicle fire emergencies.
