Brimstone EV Fire Suppressor System ST™ (Mister™ & Standard 20' x 25' EV Blanket Combo)

The Brimstone EV Fire Suppressor System ST™ is a powerful two-in-one fire safety kit that combines the Brimstone EV Fire Suppressor Mister™ with the Standard EV Fire Blanket ST™. Each component is engineered to function independently, but when used together, they deliver a comprehensive fire suppression solution to shut down lithium-ion battery thermal runaway events during electric vehicle fire emergencies.

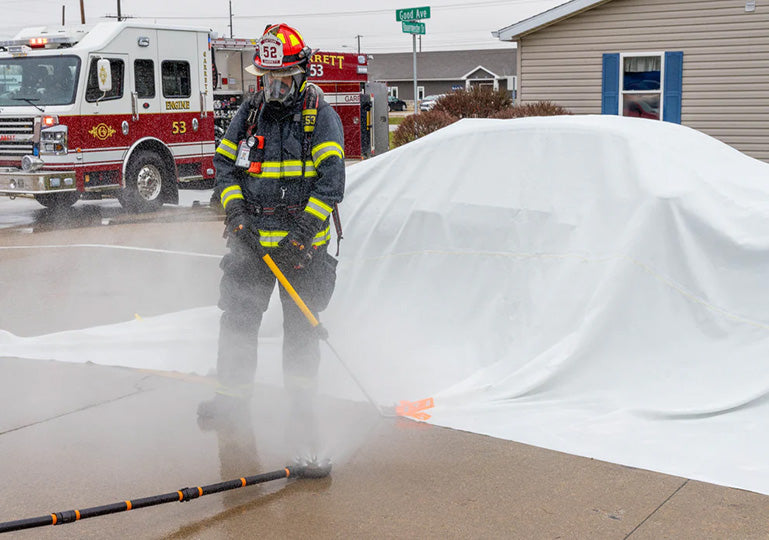

Deploying the EV blanket quickly provides immediate containment and protection, while the Mister cools the battery modules and reduces vapor cloud ignition risks—offering maximum safety for EV fires.

System Overview

• Dual Protection: Combines a high-performance EV Fire Blanket with advanced water mist cooling technology.
• Effective for Most Vehicles: Designed for automobiles, crossover SUVs, and warehouse forklifts.
• Engineered for Safety: Suppresses open flames, suffocates fires by cutting off oxygen, lowers extreme heat, and minimizes toxic smoke.
• Recommended for Emergency Responders: When paired with optional extendable poles, responders can stay safer and farther from the threat.

Brimstone EV Fire Suppressor Blanket ST™

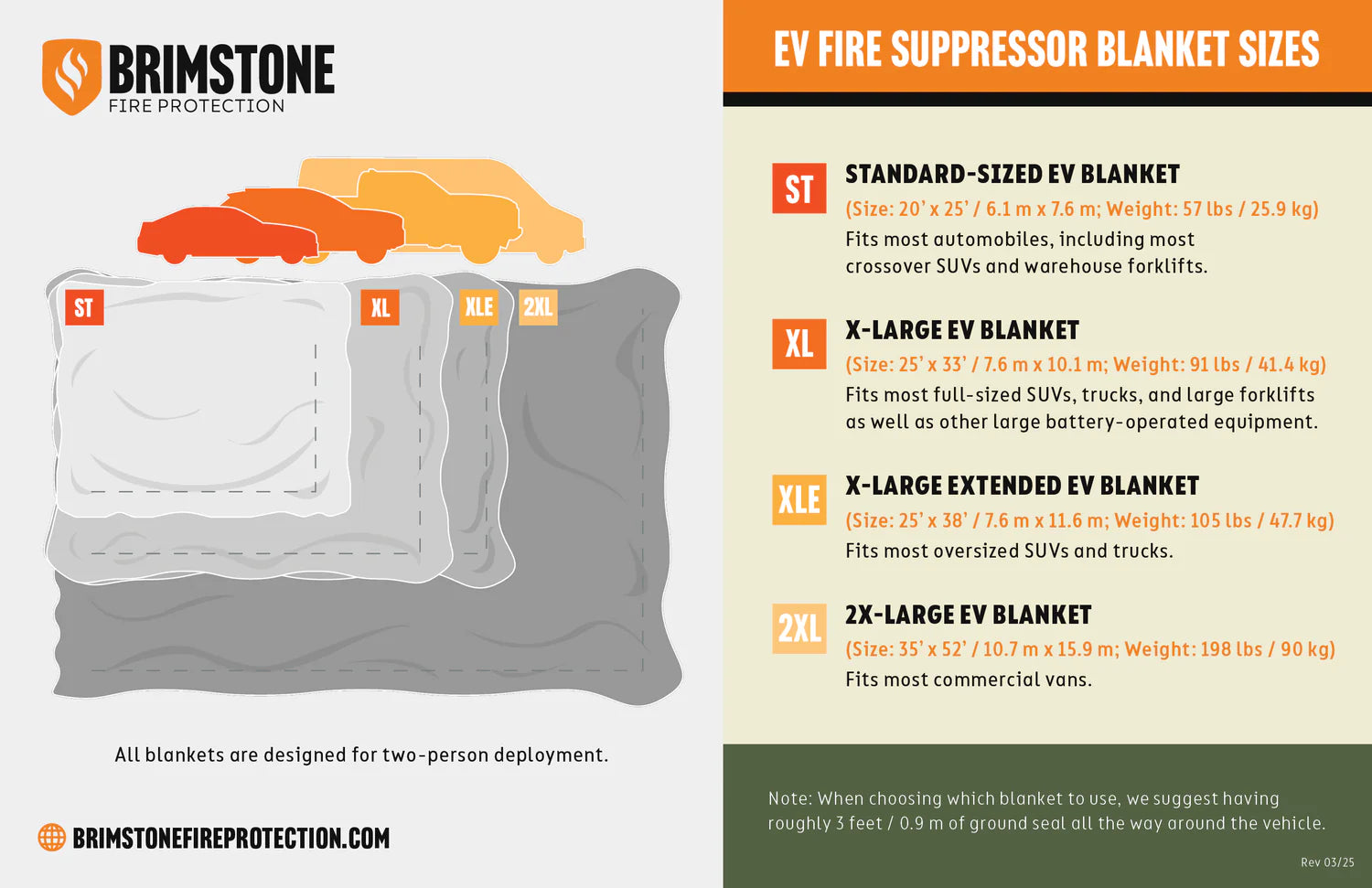

• Size & Weight: Approx. 20’ x 25’ (6.1 m x 7.6 m), 57 lbs (25.9 kg).
• Material: Ultra-lightweight, single-layer fabric with lab-formulated fire-resistant coatings.
• High-Visibility Design: Bright white fabric, reflective straps, and centerlines for fast, accurate deployment.
• Secure Containment: 45’ (13.7 m) cinch strap doubles as a full vehicle wrap for maximum control.

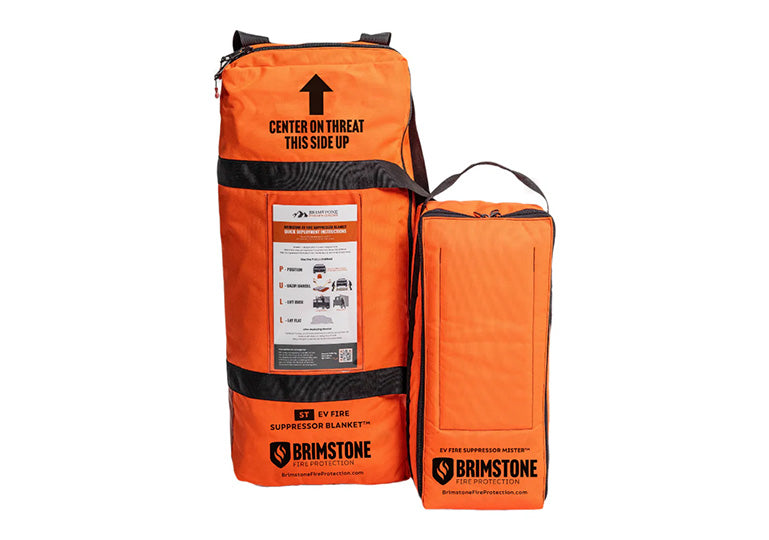

• Deployment: Two-person “DROP & GO” quick-access zipper bag with reinforced “DRAG & GO” pad.

Additional Uses

• Fire Break / Fire Wall: Cover objects or create barriers to stop fire spread.
• Solar Panel Safety: Can reduce output by covering panels in emergencies.

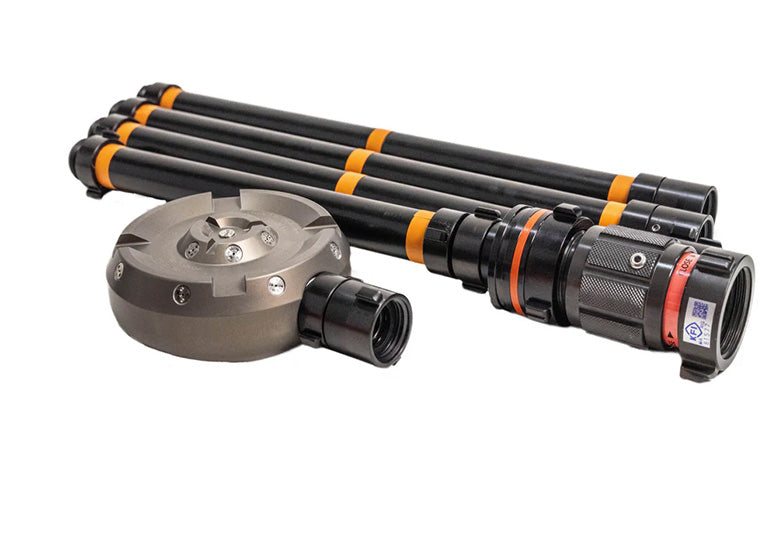

Brimstone EV Fire Suppressor Mister™

• Low-Profile Head: Just 2.25” (5.7 cm) tall, fits under most vehicles.
• Spray Power: 10 gpm (38 lpm) low-flow mist with firefighting droplet size <1,000 microns.
• Efficient Cooling: Matches high-flow performance while conserving water and reducing toxic runoff.
• Omni-Directional Coverage: 15 spray nozzles deliver 360° suppression.
• Durable Construction: Includes valve pipe, universal swivel, three standard pipe lengths, and inline mesh filter for reliable operation.
• Compatibility: 1.5” forestry lug fitting connects to U.S. fire hoses and trucks.

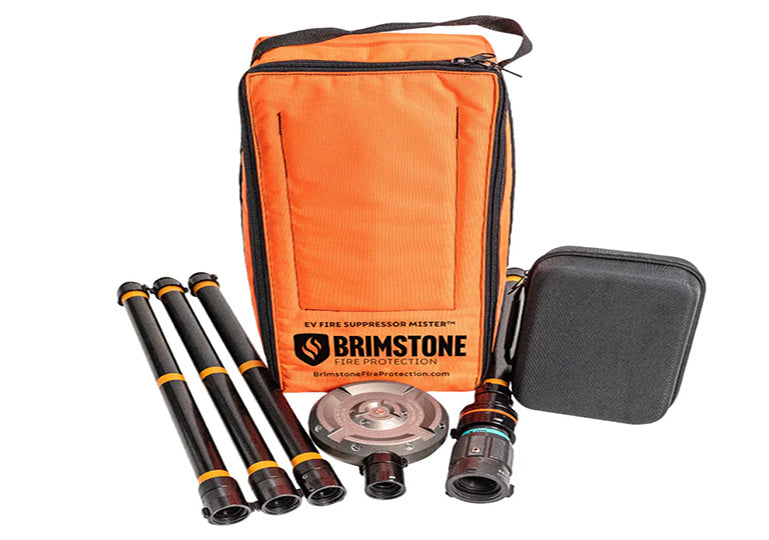

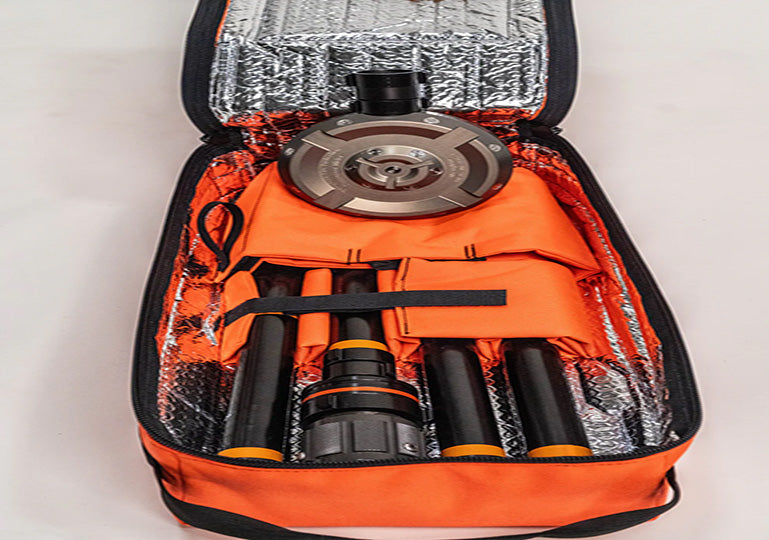

• Portable Storage: Comes with a carrying bag and zippered hard case for accessories.



Specifications

Mister

• Assembled Length: 92” (233.7 cm)
• Weight: 12 lbs (5.5 kg)
• Carrying Case: 9.75” x 20.5” x 5.5” (24.8 cm x 52.1 cm x 14 cm)

Blanket

• Size: 20’ x 25’ (6.1 m x 7.6 m)
• Weight: 57 lbs (25.9 kg)
• Carrying Bag: 13” x 30” x 7” (33.0 cm x 76.2 cm x 17.8 cm)
• Cinch Strap Length: 45’ (13.7 m)

Tested & Certified Safety

• Heat Resistance: Melting point 2050°F+, softening point 1350–1600°F.
• Chemical Resistant: Withstands corrosive agents and chemical reagents.
• 3rd-Party Verified:
  • FAA 25.853B Flammability Test – PASSED
  • FAA 25.853 Flammability Test – PASSED
  • FAA AC20-135 Fireproof 2000°F Oil Burner Test – PASSED (no flame pass-through)

⚠️ Important Notice: Competitors advertising “NFPA 701 Tested” use a drapery fabric standard, which is not valid for EV or vehicle fires. Brimstone blankets are tested against aviation-grade fire safety standards for true protection.

What’s Included

• EV Fire Suppressor Mister Kit
  • 6” diameter Mister head with 15 nozzles
  • Valve pipe & three standard pipe lengths
  • Inline filter sleeve
  • Carrying bag + hard case with accessories

• Standard EV Fire Blanket ST™
  • • Blanket with carrying bag
    • 45’ cinch strap
    • Step-by-step instruction card
