Brimstone EV Fire Suppressor System XL™ (Mister™ & XL 25' x 33' EV Blanket Combo)

The Brimstone EV Fire Suppressor System XL™ is a dual-action fire safety solution combining the Brimstone EV Fire Suppressor Mister™ with the XL EV Fire Blanket™. Each component can operate independently, but when deployed together they deliver a comprehensive suppression system designed to shut down lithium-ion battery thermal runaway events during electric vehicle fires.

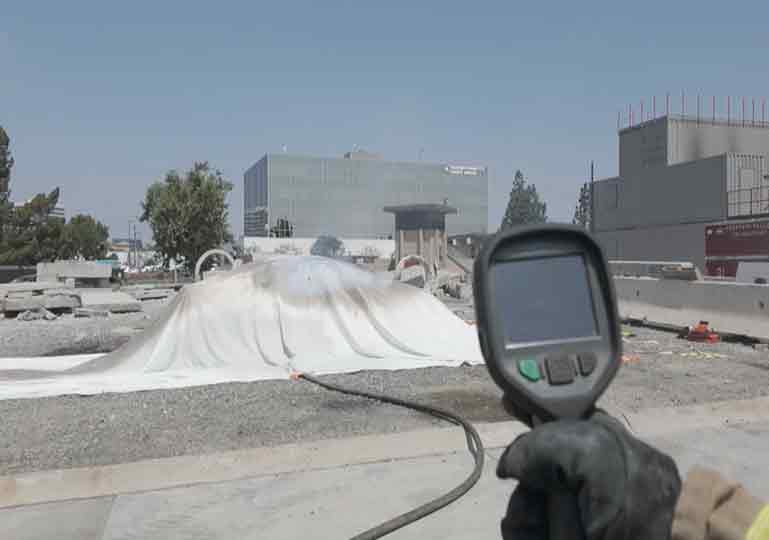

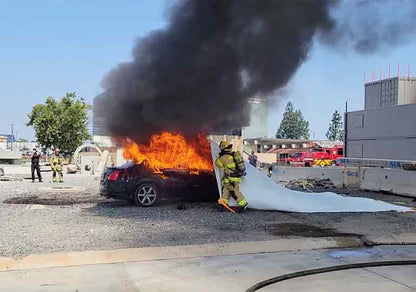

The EV Blanket provides immediate containment and flame suppression, while the Mister cools battery modules and helps reduce vapor cloud ignition risk. This one-two system ensures maximum protection for EV emergencies.

System Highlights

• Complete EV Fire Suppression: Combines misting technology with a high-performance XL fire blanket.
• Designed for Large Vehicles: Ideal for full-sized SUVs, trucks, forklifts, and other large EVs.
• Multi-Stage Protection: Cuts off oxygen, reduces heat, suppresses flames, and minimizes smoke.

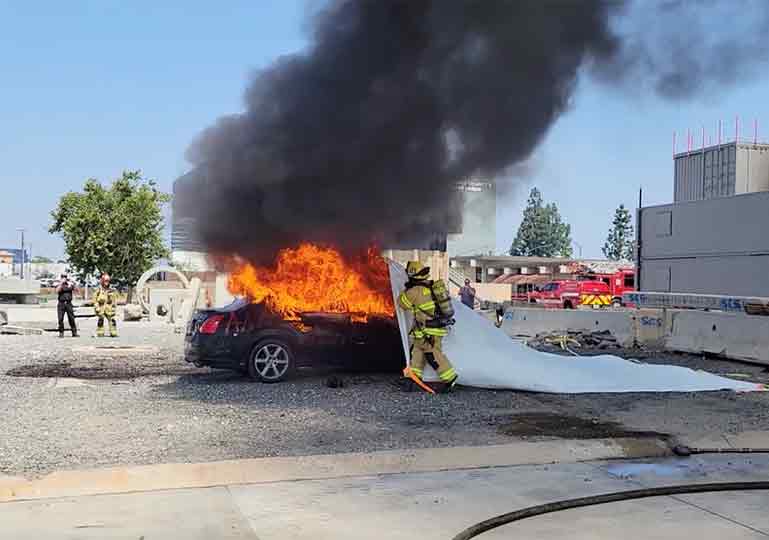

• Responder-Friendly: Blanket system includes extendable poles for safe deployment at a distance.

Brimstone EV Fire Suppressor Blanket XL™

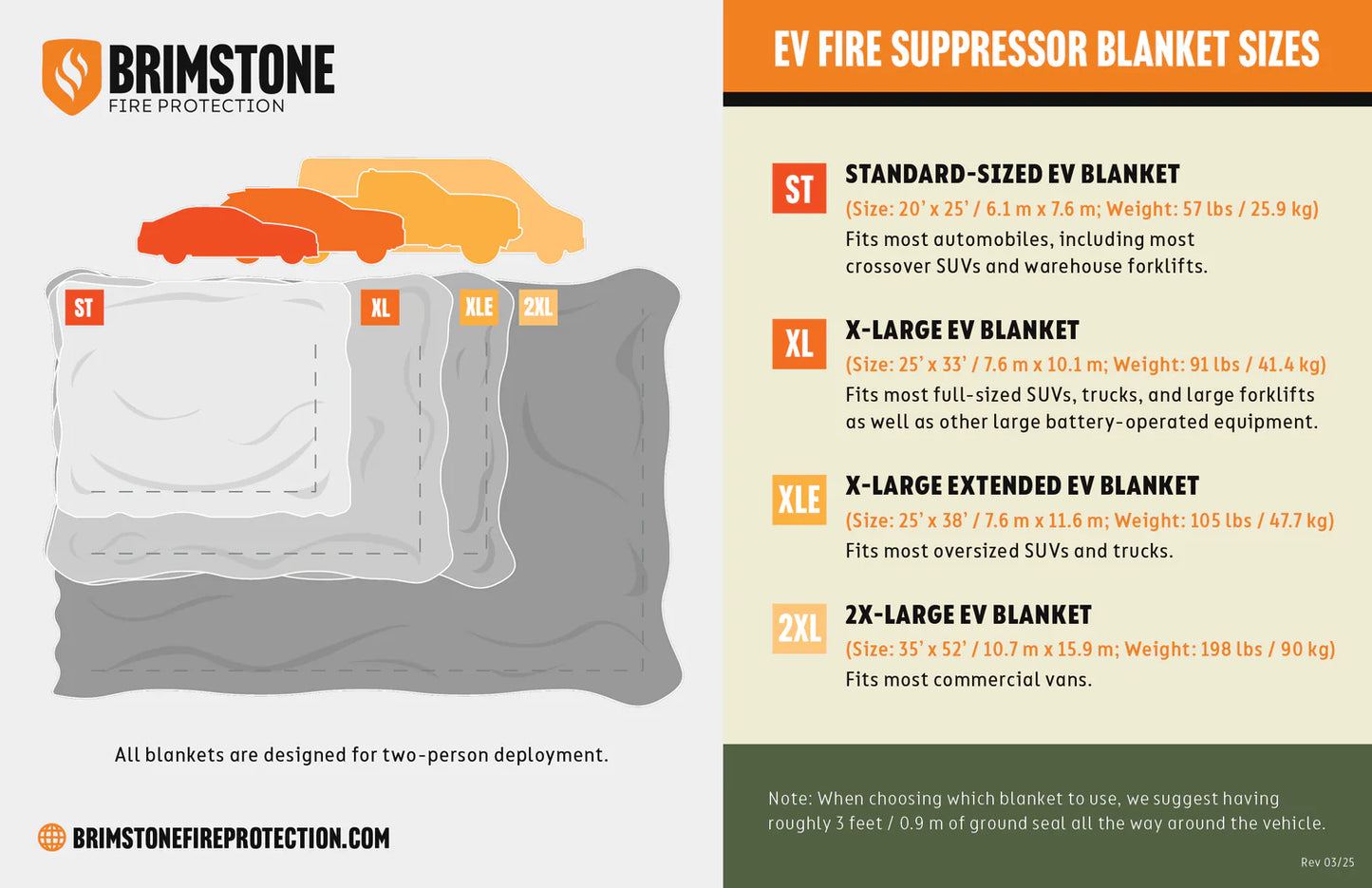

• Size & Weight: Approx. 25’ x 33’ (7.6 m x 10.1 m), 90 lbs (40.8 kg).
• Material: Lightweight, fire-resistant coated fabric with extreme heat tolerance.
• High-Visibility Design: Bright white surface, reflective straps, and centerline markings.

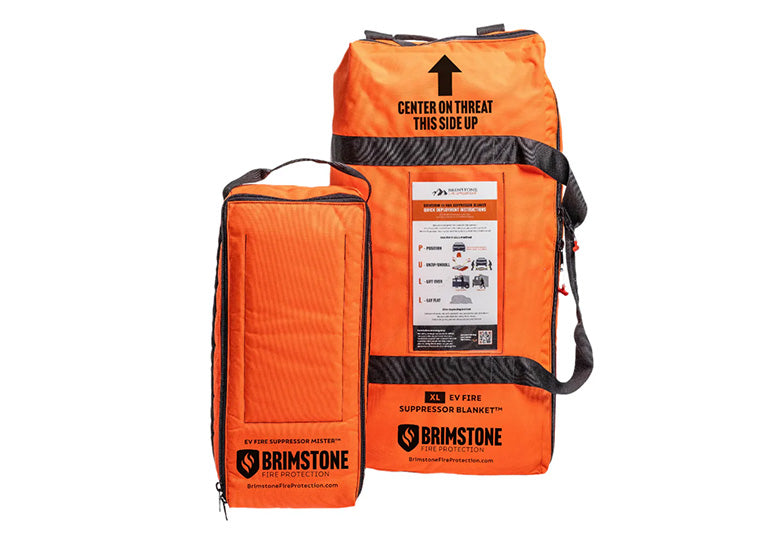

• Deployment System: Quick “DROP & GO” zipper bag with reinforced “DRAG & GO” pad.

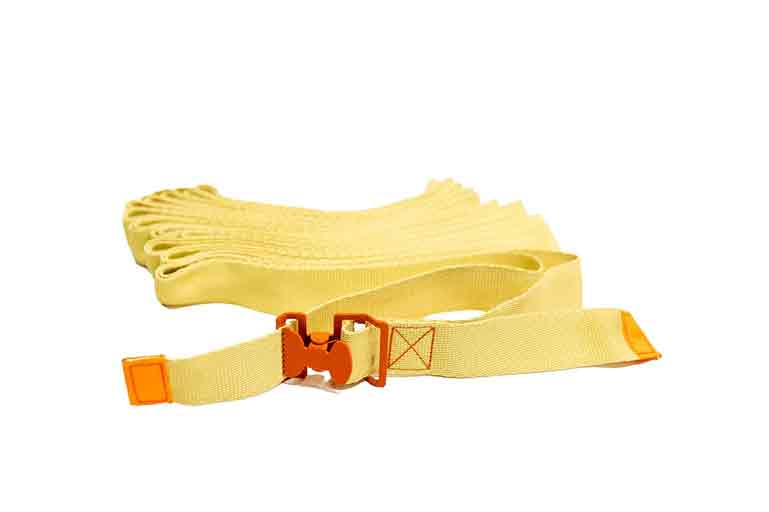

• Secure Wrap: 53’ (16.2 m) cinch strap for complete vehicle coverage.

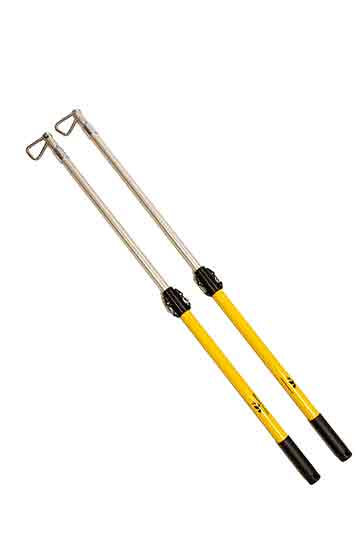

• Included: Pair of Brimstone Extendable Poles (30" retracted, 53" extended) for safer handling on larger vehicles.

Additional Applications

• Fire Break / Fire Wall – Shield property or equipment from advancing flames.
• Solar Panel Cover – Reduces output when panels must be neutralized in emergencies.

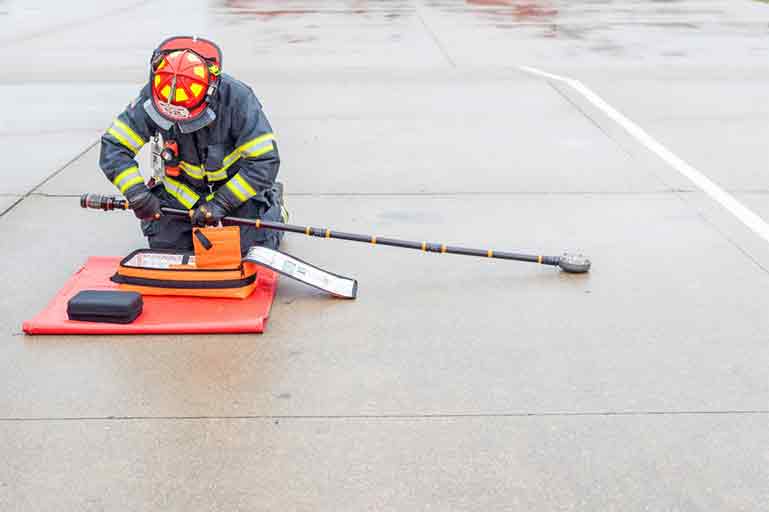

Brimstone EV Fire Suppressor Mister™

• Low-Profile Design: Just 2.25” (5.7 cm) tall, easily slides under most vehicles.
• Spray Output: 10 gpm (38 lpm) low-flow mist with firefighting droplet size <1,000 microns.
• Water & Runoff Efficient: Proven as effective as high-flow models, while conserving water and limiting toxic runoff.

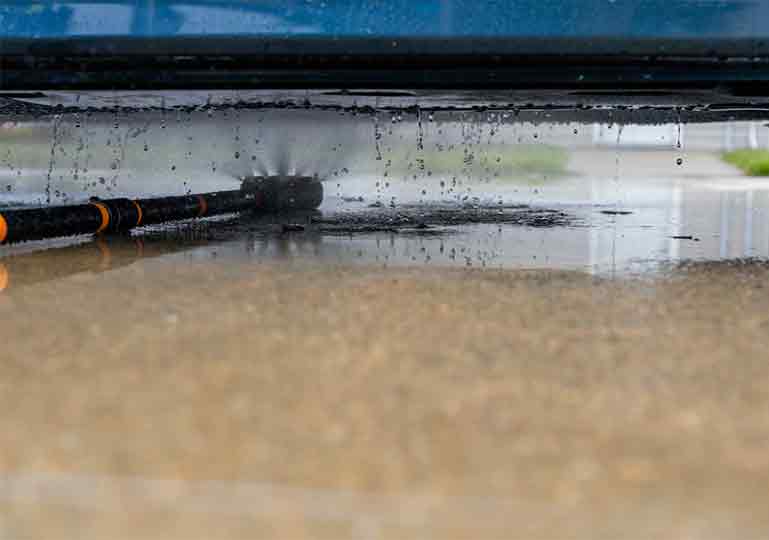

• 360° Coverage: 15 omni-directional nozzles for full undercarriage protection.

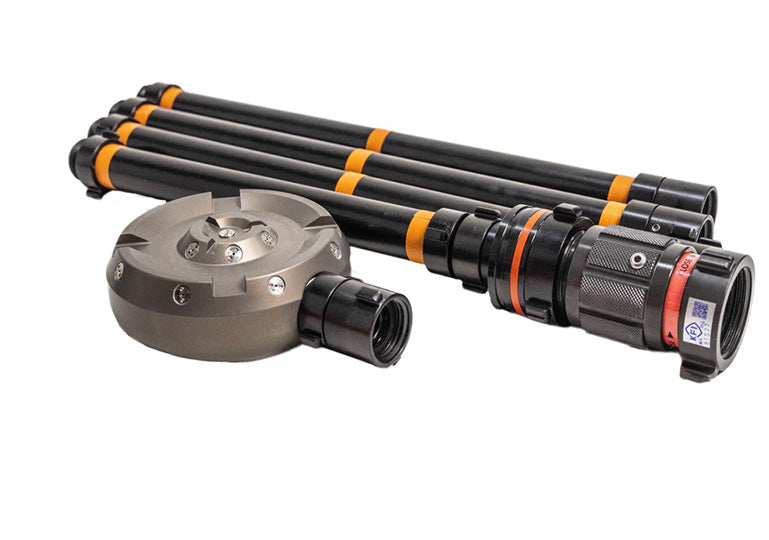

• Durable Construction: Includes valve pipe, universal swivel, three pipe lengths, and inline mesh filter.
• Compatibility: 1.5” forestry lug fitting works with standard U.S. fire hoses and trucks.

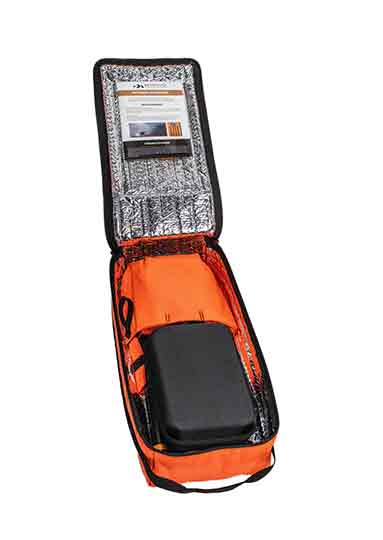

• Portable Storage: Carry bag and zippered hard case included for accessories.

Specifications

Mister

• Assembled Length: 92” (233.7 cm)
• Weight: 12 lbs (5.5 kg)
• Carrying Case Size: 9.75” x 20.5” x 5.5” (24.8 cm x 52.1 cm x 14 cm)

Blanket

• Size: 25’ x 33’ (7.6 m x 10.1 m)
• Weight: 90 lbs (40.8 kg)
• Bag Size: 15” x 30” x 9” (38.1 cm x 76.2 cm x 22.9 cm)
• Cinch Strap: 53’ (16.2 m)

Safety Testing & Certification

• Heat Resistance: Melting point 2050°F+, softening point 1350–1600°F.
• Chemical Resistant: Withstands corrosive and hazardous reagents.
• 3rd-Party Verified:
  • FAA 25.853B Flammability Test – PASSED
  • FAA 25.853 Flammability Test – PASSED
  • FAA AC20-135 Fireproof 2000°F Oil Burner Test – PASSED (no flame penetration, material remained pliable)

⚠️ Important Note: Some competitors claim “NFPA 701 Tested,” which only applies to drapery fabrics—not vehicle fires. Brimstone products are tested against aviation-grade fireproofing standards for true EV protection.

What’s Included

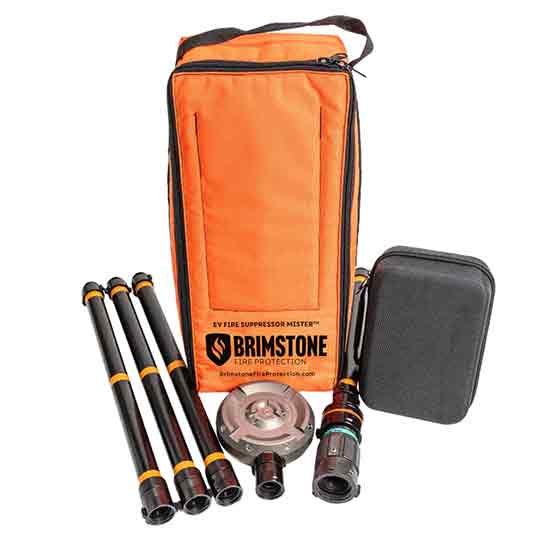

• EV Fire Suppressor Mister (PN: FP-WM-KIT)
  • Mister spray head (6” diameter, 15 nozzles)
  • Valve pipe + 3 standard pipe lengths
  • Inline mesh filter sleeve
  • Carrying bag + hard case (extra gaskets, screens, tools)

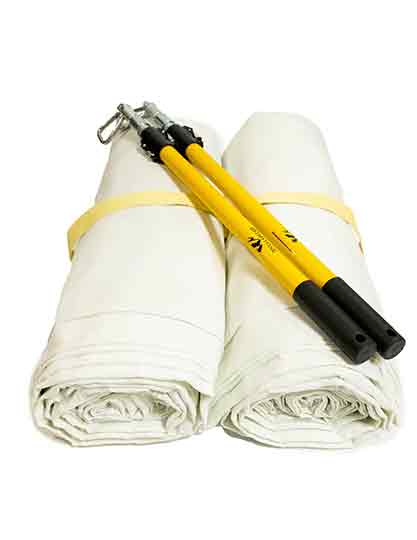

• XL EV Fire Suppressor Blanket (PN: FP-BL-XL-EV-K1)
• • Blanket with carry bag
  • Pair of extendable poles
  • 53’ cinch strap
  • Instruction card

Availability & Manufacturing

• International Patent Pending
• Manufactured in ISO 9001:2015 certified facilities
• Proudly sewn in the USA
