• Ultra-Modular IBC Spill Pallet® 3-Tank Model
1 4

SCI Specialty Containers

Ultra-Modular IBC Spill Pallet® 3-Tank Model

Ultra-Modular IBC Spill Pallet® 3-Tank Model

$2,804.00
$2,804.00
Sale Sold out

Meet EPA regulations with low-cost spill containment for multiple IBC tanks

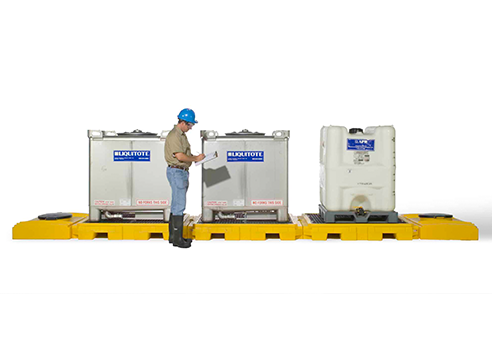

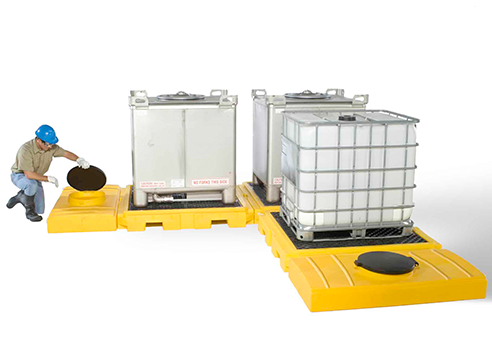

 Storing multiple IBCs, totes or tanks can take up a lot of room, and a lot of money. But with the Ultra-Modular IBC Spill Pallets, it can take up less of both. By connecting the containment sumps and sharing walls, these units offer an economical solution that takes up a relatively small amount of space.

Product Highlights

  • Containment capacity: 355 gallons
  • Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lbs UDL.
  • Each of the low profile spill pallets has a containment capacity of 75 gallons and measures 62" x 62" x 8.75”H.
  • Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next.
  • To increase containment capacity, a 65-gallon capacity expansion tank is available.

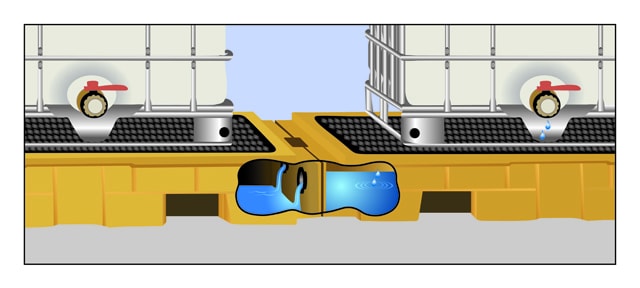

  • "Flow-through" bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and expansion tanks together.
  • Bulkhead fittings allow spills to be channeled throughout the containment system, thereby "borrowing" containment capacity from adjacent spill pallets and expansion tanks.
  • Constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents, and oils.
  • Ultratech #1126

1126
