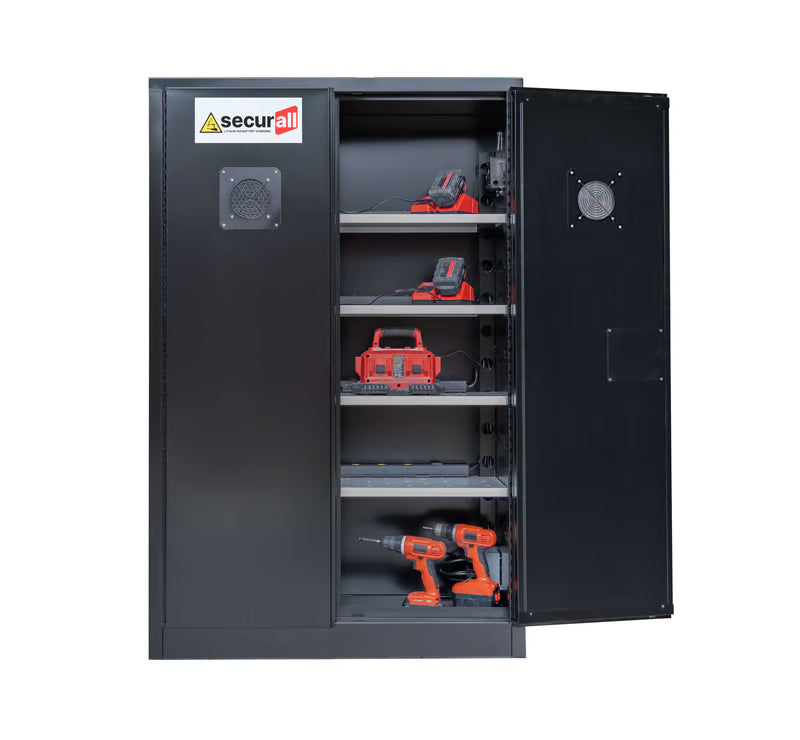

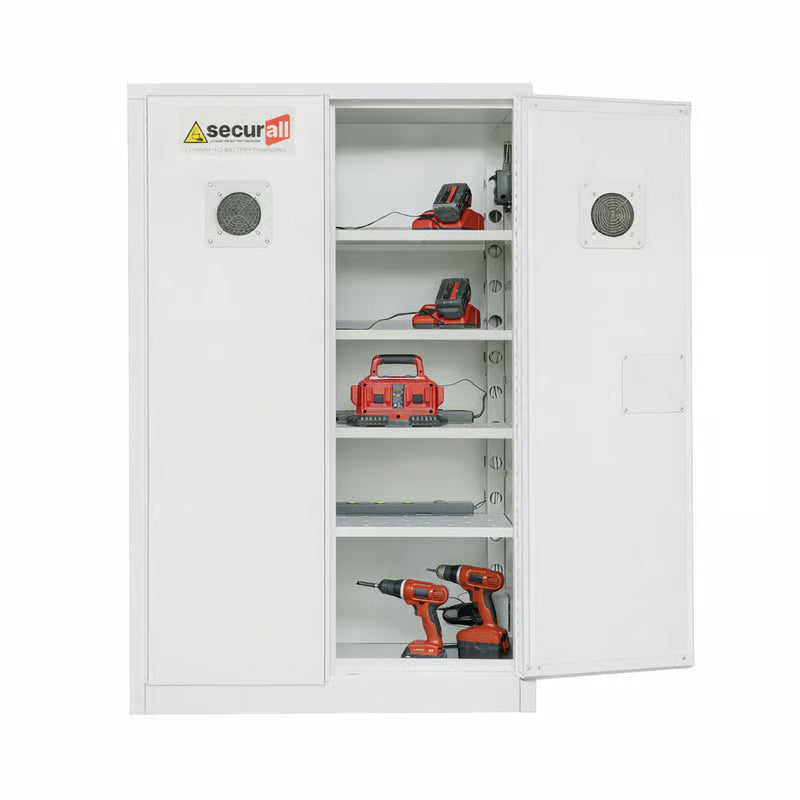

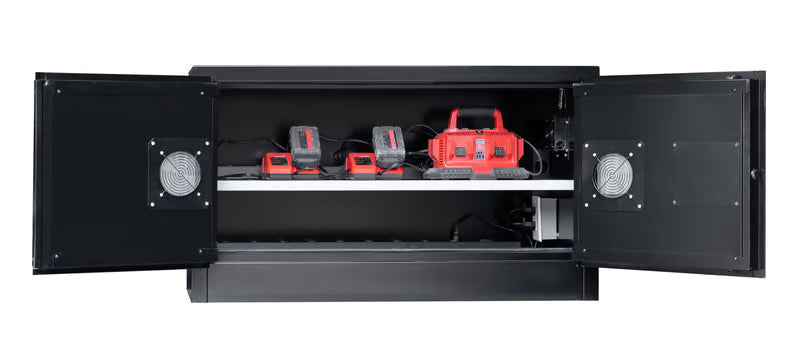

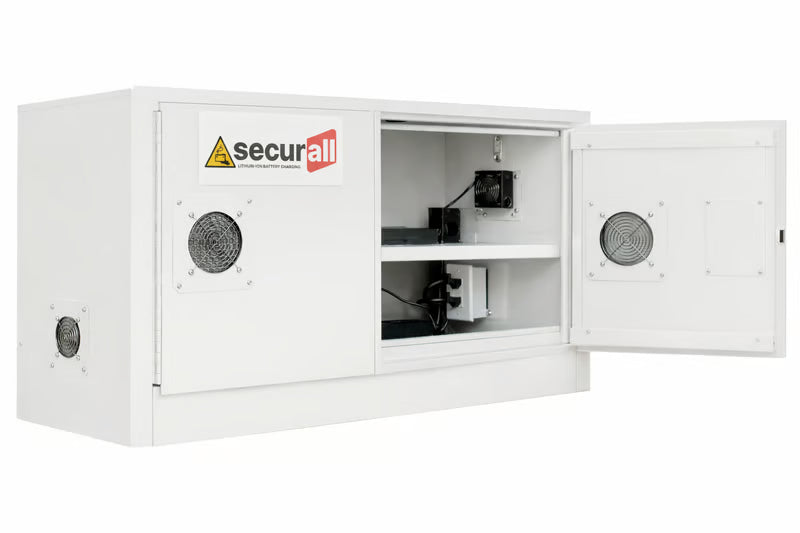

Li145 Lithium-Ion Battery Charging Cabinets - Small and Large

Protect your facility and your team with Securall’s purpose-built Battery Charging Cabinets —engineered for the safe storage and charging of lithium-ion, lead-acid, and other rechargeable batteries. Securall understands the critical risks associated with modern energy storage. Our battery charging cabinets are more than enclosures—they are risk mitigation tools, compliance enablers, and asset protectors. With optional customization available, we’re ready to meet even the most demanding charging environments.

Whether you're powering material handling equipment, tools, or backup systems, our cabinets deliver the safety, performance, and compliance you need.

Specification (Tall Cabinet)

Specification (Short Cabinet)

Fan - UL-certified fan with dual-ball bearings and 67,000 hour lifespan.

• Fan Dimensions: 3.2x3.2x1 in.
• Voltage: 115V
• Speed: 3200 rpm
• Airflow: 22 CFM
• Noise: 32dBA
• Power: 11W

Power Strip

• Master on/off switch with 9 outlets.
• 15 amp circuit breaker.
• Safety covers protect unused outlets.
• Gauge 14/3

Power Inlet

• Voltage 125V
• Amperage 15 A
• Plug Configuration 5-15
• NEMA Configuration: NEMA 5
• Connection Type: Straight Blade

Built to Meet Key Standards

Securall cabinets help you meet key industry safety codes and regulations:

• NFPA 70 – National Electrical Code
• NFPA 1 – Fire Code for hazardous materials
• OSHA 29 CFR 1910.178(g) – Battery charging safety requirements
• IBC / IFC Codes – Building and fire safety compliance

Designed for Safety & Compliance

Battery charging carries inherent risks. Securall cabinets are built to minimize fire hazards, contain thermal events, and meet or exceed OSHA, NFPA, and UL safety standards.

Our cabinets are trusted across industries including:

• Warehousing & logistics
• Manufacturing & industrial operations
• Healthcare & laboratories
• Construction & job sites
• Telecom & IT infrastructure

Standard Features

Securall Battery Charging Cabinets are engineered to meet the highest standards for safety, compliance, and durability. Designed for facilities handling rechargeable batteries—such as lithium-ion, nickel-cadmium, and lead-acid units—our cabinets provide a centralized solution for both secure storage and safe charging of battery systems across industrial and commercial applications.

Every Securall cabinet is crafted to exceed industry benchmarks. Our battery charging cabinets are no exception—they incorporate features that directly address the hazards of battery storage and the demands of modern charging operations.

• INTEGRATED VENTILATION SYSTEMS
  Designed with built-in exhaust vents and mechanical fan systems to safely disperse heat and gases generated during battery charging cycles.
• ELECTRICAL READINESS
  Cabinets come pre-configured with electrical outlets, internal power strips, or hardwired connections to support multi-battery charging.
• TEMPERATURE MANAGEMENT
  Active & passive thermal dissipation ensure stable, safe charging even in high-demand environments.
• SECURE, LABELED ACCESS
  Lockable doors keep contents protected from unauthorized access, while clear hazard signage and labeling keep your team informed and compliant.
• 18 GAUGE DOUBLE WALL CONSTRUCTION & SEAMED JOINTS
  Securall Safety Cabinets have Structurally Reinforced 18-Gauge Double Wall All Welded Construction throughout.
• DOUBLE WALL CONSTRUCTION WITH 1 ½” AIR SPACE
  Securall cabinets have Double Wall Construction with 1 ½" Air Space throughout the cabinet design.
• NON-SPARKING , 3-POINT, SELF-LATCHING DOORS
  Each Securall cabinet is outfitted with FM required Non-Sparking, 3-Point, Self-Latching door(s) for safe and complete closure every time.
• STATIC GROUNDING CONNECTION
  All Securall cabinets come ready with an FM defined static ground connection, comprised of a NFPA compliant 5/16 - 18 x ½” Zinc Plated Grounding Bolt.
• ADJUSTABLE LEVELING LEGS
  Securall cabinets are equipped with four adjustable Zinc Plated Leveling Legs for placement on uneven surface areas.
• FLUSH MOUNTED LOCKING HANDLE
  All Securall safety cabinets come standard with a Flush Mounted Locking Handle for smooth finger-tip operation.
• FULL LENGTH, HEAVY-DUTY PIANO HINGES
  Securall double-wall doors are secured to unit on full length, Heavy-Duty Piano Hinges for maximum security and limited vapor release.

Start Charging Safely Today
Avoid Catastrophic Losses - Most Lithium-ion battery fires occur while charging. Securall’s Lithium-Ion Battery Charging Cabinet helps minimize potential losses from fire, smoke, and explosions caused by Lithium batteries.

✔ Crossflow Fan Ventilation System
A constant supply of fresh air pulling into the cabinet helps keep the batteries cool while charging in their contained environment.


✔ Circuit Breaker
Automatic circuit breaker tripping feature in case of Thermal runaway


✔ Convenient Benchtop Design
Keep your batteries easily accessible while they charge in a safe and contained environment at a convenient counter height.


✔ Lockable Doors
Control the access to lithium-ion batteries, helping to prevent theft and enforce protocols with its lockable paddle latch handle.


✔ Small Footprint
Maintain safety and battery charging capacity without bulky storage units that consume valuable and limited space.
