SCI Specialty Containers

Steel Concrete Washout Pan | 74"x74"x14" - 1 Cubic Yard - 199 Gallon Capacity

Steel Concrete Washout Pan | 74"x74"x14" - 1 Cubic Yard - 199 Gallon Capacity

Regular price $1,995.00
Regular price Sale price $1,995.00
Sale Sold out

199-Gallon Heavy-Duty Concrete Washout Pan (74"x74"x14")

The Pro-Grade Solution for BMP Compliance & Slurry Management

Keep your job site clean, compliant, and inspection-ready with our 74″ x 74″ low-profile washout tub. Engineered as a critical Best Management Practice (BMP) tool, this leak-proof steel pan is designed for the immediate cleanup of mixers, pump trucks, and tools.

Forget flimsy disposable pits that leak and tear. Our American-made, 1-cubic-yard tubs offer a rugged, reusable alternative that protects your site from environmental fines and keeps slurry runoff exactly where it belongs: contained.

Key Performance Features

  • Ultra-Low Profile: With a 10.85″ interior wall, this pan is specifically engineered for easy pump truck clearance and access in tight urban footprints.
  • Built to Outlast: Fabricated from heavy-gauge, watertight steel to withstand the daily abuse of the toughest job sites without buckling or leaking.
  • Logistics-Optimized: Designed to nest and stack, allowing you to maximize yard space and significantly reduce freight costs when moving multiple units.
  • "Harden-and-Dump" Workflow: Streamline your disposal process. Allow the slurry to cure directly in the pan for easy removal, or simply swap in a fresh unit to eliminate project downtime.
  • Multi-Purpose Utility: While built for concrete, its watertight seal makes it an ideal secondary containment vessel for fuel, oil, or pumper hopper spillage.
  • CDOT Type 1 compliant; stackable and nestable for efficient transport and storage.
  • FREIGHT QUOTE REQUIRED

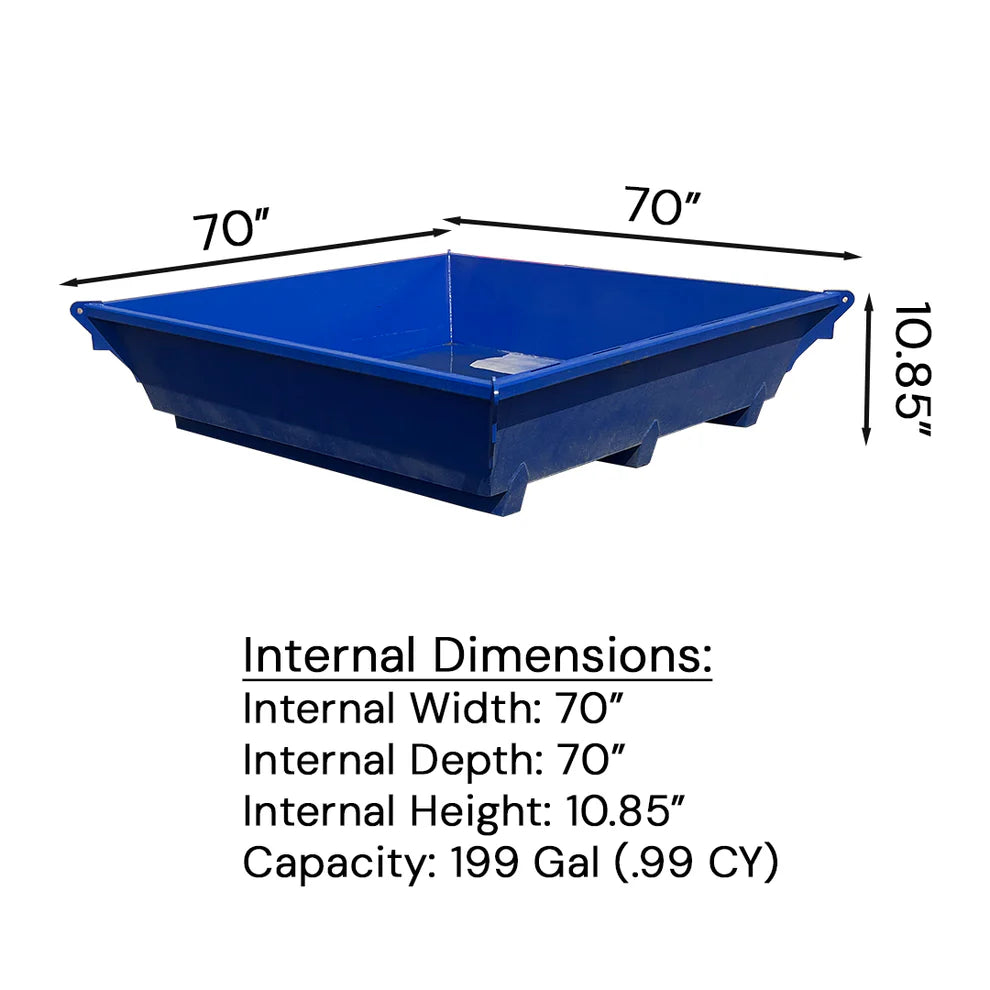

1 Cubic Yard Specifications

Feature

Internal Dimensions

External Dimensions

Width

70 Inches

74 Inches

Length

70 Inches

74 Inches

Height

10.85 Inches

14 Inches

Unit Weight

595 LBS

Actual Capacity

1 CY (199 Gallons)

SKU:SWP7414
