Ultra-Spill Deck® P1, P2 & P4 Module & Ramp Option
Ultra-Spill Deck® P1, P2 & P4 Module & Ramp Option
Ultra-Spill Deck® P1, P2 & P4 Module
Low profile, modular spill decks allow you to design and create a spill containment system that meets your specific needs
The first spill containment products for drums were very tall in order to meet the required gallon capacity specified by the EPA regulations. Many pallets today are still relatively tall (approx. 12-14″ for 4-drum models and approx. 16-17″ for 2-drum models). In many situations and applications, this height is not an issue. If drums are loaded and rarely used or simply stored on these spill pallets until they are needed, it’s really not a big deal.
But for those applications where drums are being moved on and off the pallets with any kind of frequency, that height can become very significant, very quickly. The other potential issue is the height at which a taller spill pallet can put the top of a drum. If hazmat is being poured into the drum, or dispensed out of it, that height can put splashed or spilled liquid right at eye level.
The Ultra-Spill Decks offer a very low profile (5 3/4″) to make handling much easier. It also lowers drum tops so that they are not dangerously close to eye level.
Product Highlights

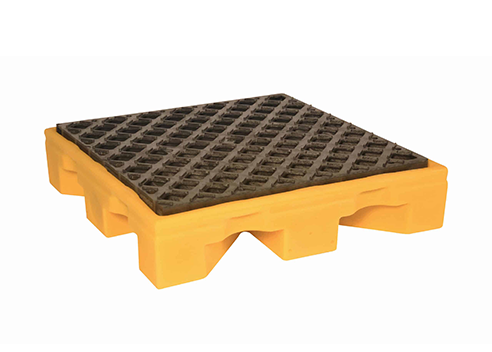

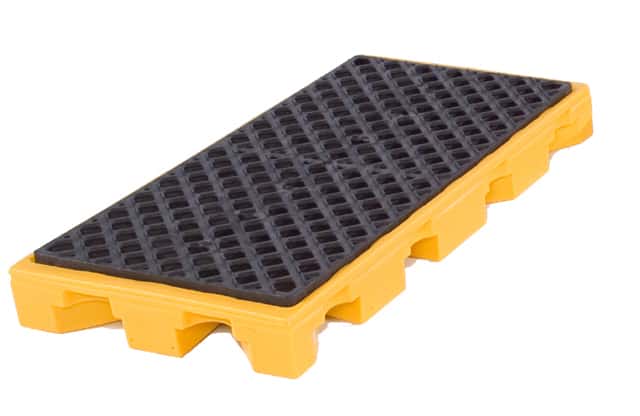

- Ultra-Spill Decks are available in 1, 2 and 4-drum modules. Modules are easily connected together with bulkhead fittings to allow a virtually unlimited number of customized configurations.
- The bulkhead fittings not only "lock" connected modules together, but allow spilled liquid to flow from one module to the next.
- All-polyethylene construction meets a wide range of chemical compatibility needs.
- Low profile designs 5.8" height offers safe and convenient loading/unloading of drums.
- Applications include hazardous waste collection, storage of virgin chemicals, drum dispensing and battery storage.
-

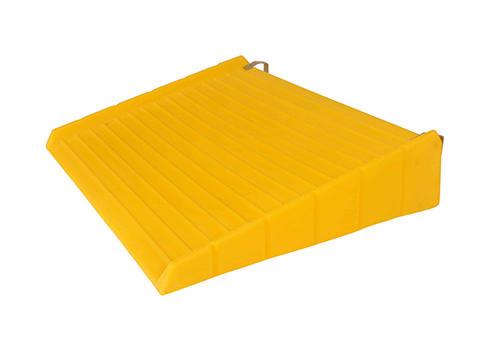

Ramp works with P2 and P4
Ultra-Spill Deck Product Data Sheet
